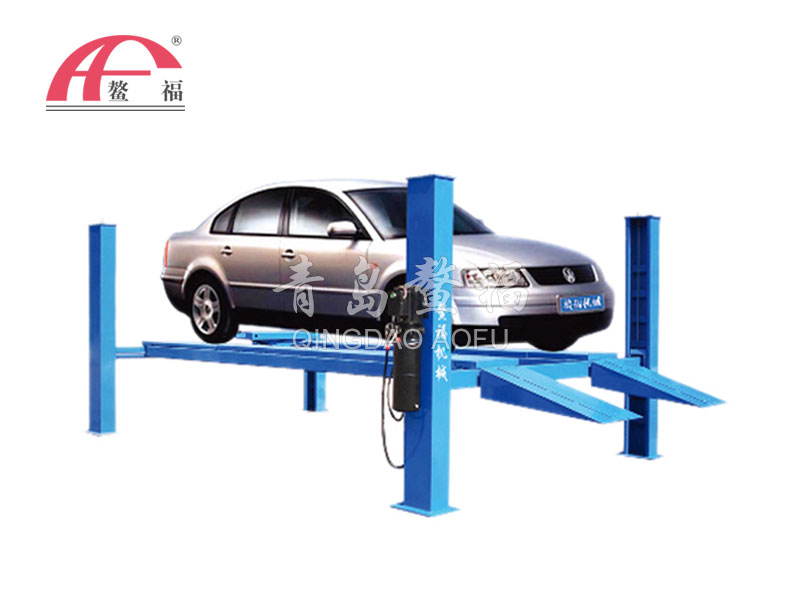

3.5T Four Post Car Lift


Suitable for lifting maintenance of vehicles under 3.5 tons


  • Model
  • QJY3.5/4-4B
  • Total Weight(T)
  • 3.5/4
  • lift height(mm)
  • 1700
  • Effective span(mm)
  • 2716
  • Lift time(s)
  • 60
  • Pumping station pressure(Mpa)
  • 16
  • Motor Power(Kw)
  • 3
  • Voltage(V)
  • 220/380V
  • Drive mode
  • Hydraulic
  • Accessories
  • Secondary lift trolley
  • Remark
  • Customized according to the site

Product Features

1.Manual machine to unlock, easy and convenient;
2.Adopt the hydraulic lock and the main insurance positioning structure andthe rope breaking resistant insurance mechanism multiple-safety device,safeand reliable;
3.Adopt hte hydraulic failure and overload safety valve protection,in the event of rope breaking and insurance mechanism failure,te machine cannot bedecreased rapidly;
4.The lengthened double-level rear sliding plate,the position of front wheelturm plate can be adjusted,the secondary liting trolley’ssliding rail,a numberof secondary lifting trolleys are optional;
5.Adopt the secondary lifting trolley’s sliding rall,a number of secondarylifting trolleys are optional;
6.The platform's sliding rail,a number of secondary lifting trolleys areoptional;
7.The insinde distance of adjustable lifting platform for different vehicles withdifferent treads;
8.Receive115%dynamic and 150%static testing;
9.ISO9001、CE certified.

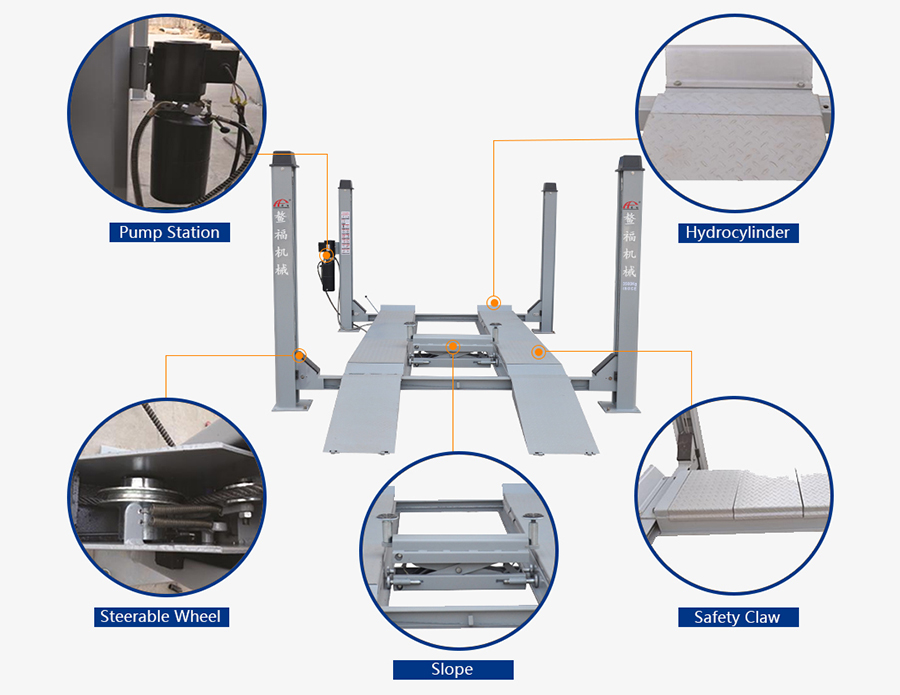

Product Details

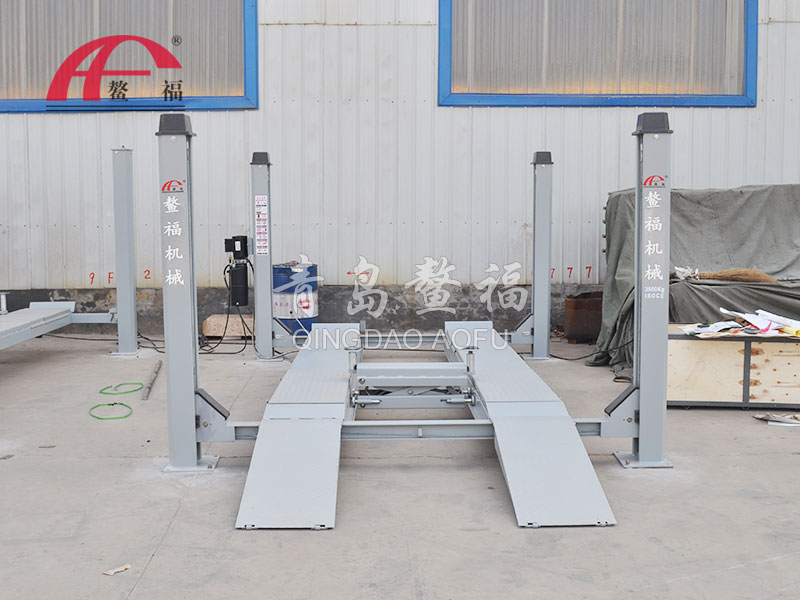

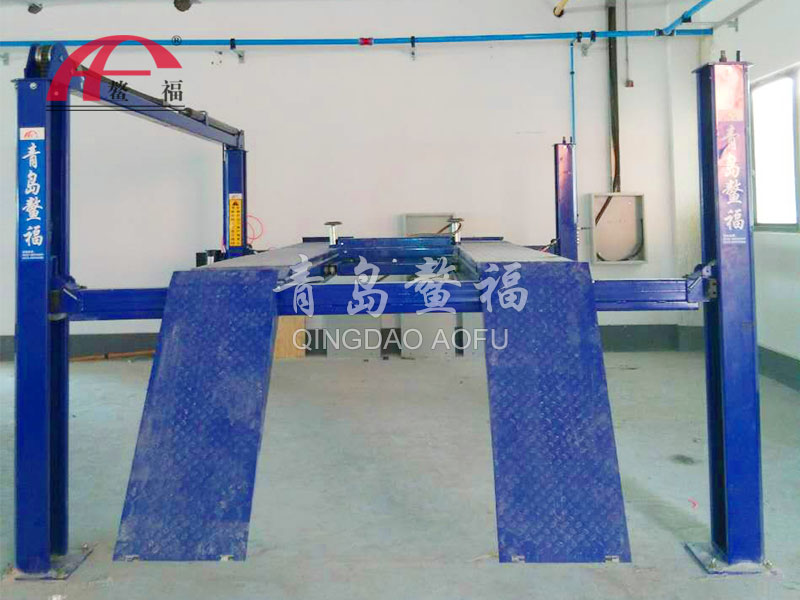

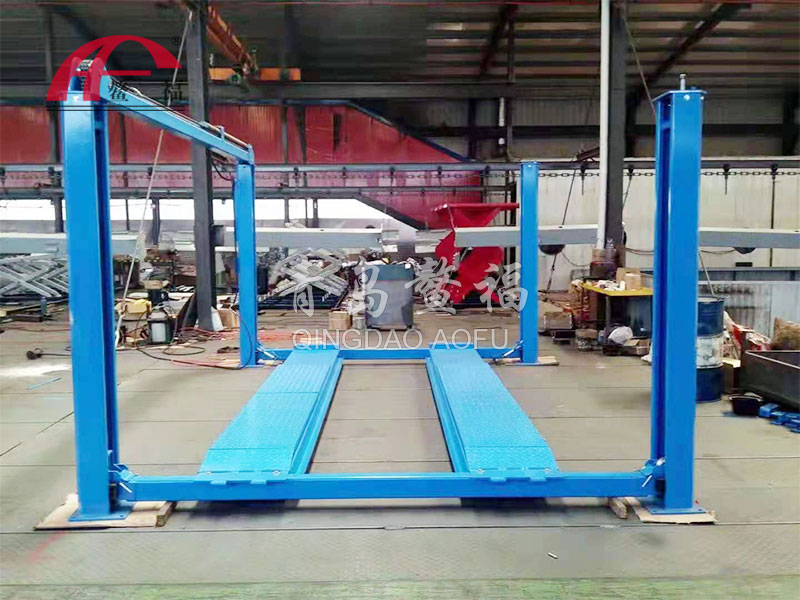

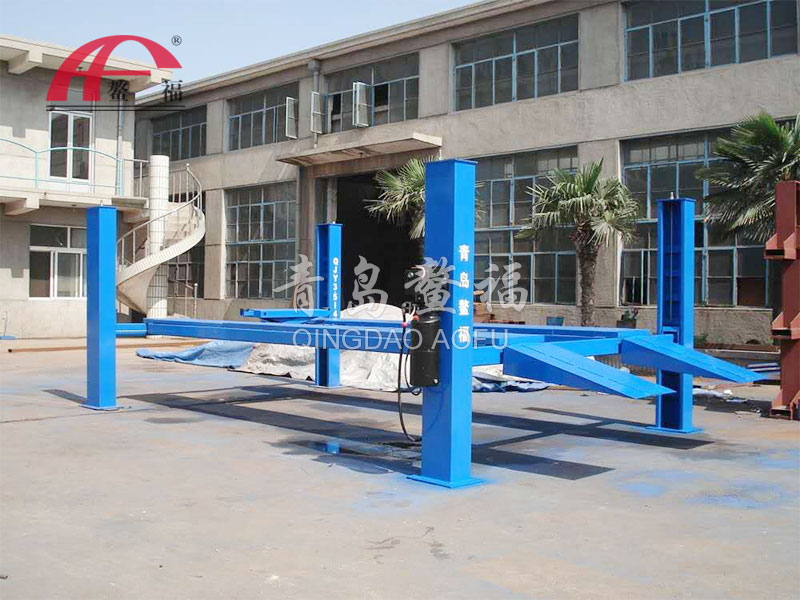

3.5T Four Post Car Lift.jpg

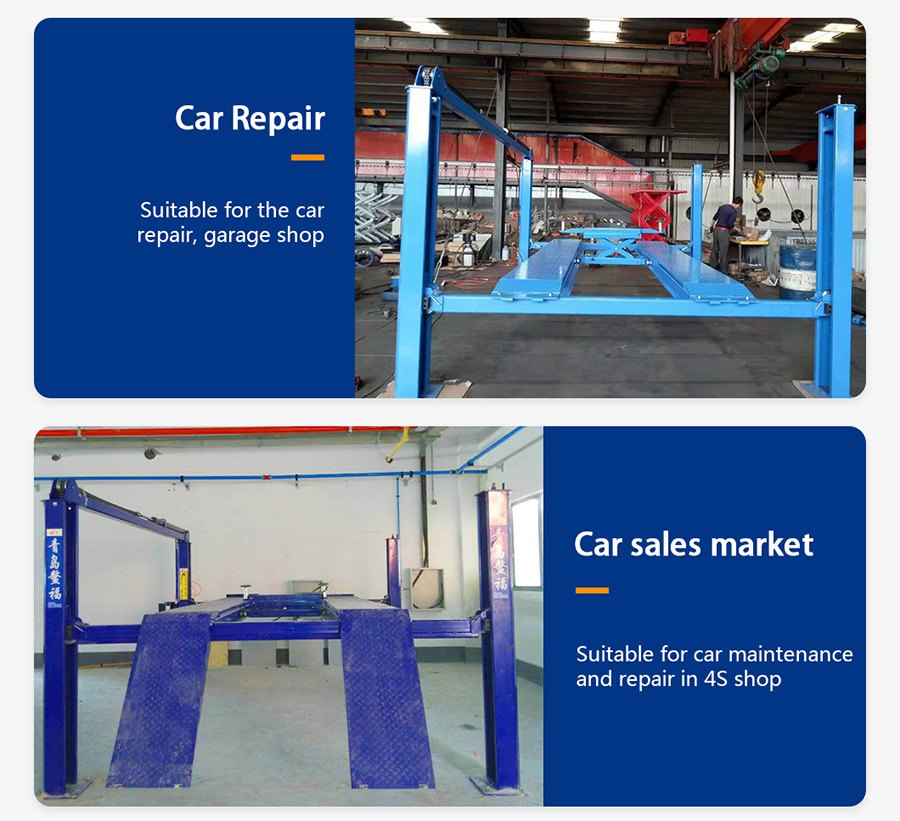

Product Applications

3.5T Four Post Car Lift

  • Q:  What is your terms of payment?

    A: T/T 30% as deposit, and 70% before shipment.

  • Q: What is your terms of delivery?

    A: EXW, FOB, CFR, CIF, etc.

  • Q: What is your warranty?

    A: The"Aofu"lifter quality warranty period is 12 months(counting from the date of          shipment.) In the warranty,product failure caused by quality problems,         our company  provide free parts.

  • Q: What is your after service ?

    A: Our company provides free lifelong after-sales service, 24 hours to reply to all inquiries.

  • Q: Are you a factory or trading company?

    A: Qingdao Aofu Machinery Co., Ltd. which is professional in the lift for more 43 years, covering car lift, truck lift and car elevator, tire changer, wheel balancer, four wheel alignment instrument etc.
